How to Install a Wireless Doorbell Chime: A Step-by-Step Guide

Of all the home upgrades you can do yourself, installing a wireless doorbell chime is one of the most satisfying. You go from no doorbell, or a broken, buzzing one, to a fully working system in well under an hour. No electrician required. No wiring running through your walls. Just a button on the front door and a receiver plugged in somewhere inside.

This guide takes you through the whole process step by step. We'll also cover the basics of replacing a wired chime unit for those making the switch, with a note on when to call a licensed electrician.

If you haven't chosen your kit yet, take a look at our wireless doorbell chime kit  it includes everything covered in this guide.

What's In the Box

Most wireless doorbell chime kits include:

•      One push button (the transmitter, which your visitors press)

•      One or more receivers (chime units, what produces the sound inside your home)

•      Batteries for the button and, if the receiver is battery-powered, for the receiver too

•      Mounting hardware: screws and/or adhesive pads for the button

•      A quick-start guide

Some kits come with a plug-in receiver (no batteries needed, just plugs into a standard power point), while others include a portable battery-powered receiver you can carry around the house. Both options work well; your choice depends on how fixed you want your setup to be.

Step-by-Step Installation

Step 1: Plan Your Layout

Before you reach for the screwdriver, spend a minute planning where the button and receiver will go.

•      The button goes beside your front door (or back gate, or wherever you need a chime point).

•      The receiver should sit somewhere you can hear it throughout your home, a central hallway, kitchen, or living area works well.

•      Think about the distance between the two. Wireless chimes come with a stated range, but walls, floors,that  and electronics all reduce that in practice. If you have a large or multi-storey home, consider a kit that supports a second receiver.

Step 2: Install Batteries and Test Before You Mount Anything

This step saves a lot of frustration. Before screwing the button to the wall:

1.    Fit the batteries into the push button.

2.    Plug in or insert batteries into the receiver.

3.    Press the button and listen for the chime from the receiver.

If it chimes, great, the unit is working, and you're ready to mount. If it doesn't, check the batteries are seated correctly and that the unit is paired (see Step 5). Sorting this now is much easier than troubleshooting after the button is screwed to the brick.

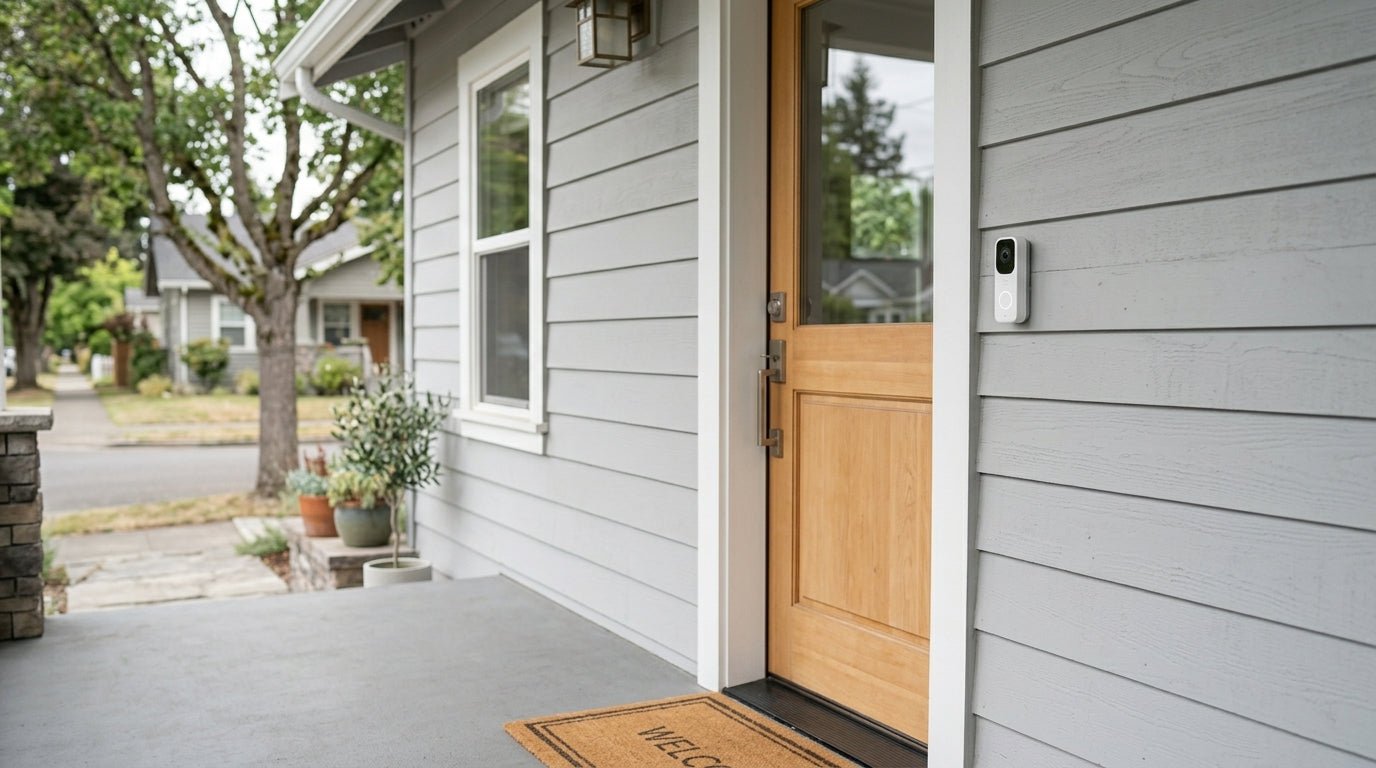

Step 3: Mount the Push Button

There are two main mounting options:

•      Screws into a wall or door frame: More permanent and secure. Use the included mounting bracket, mark your holes, drill if needed (usually just two small pilot holes), and screw the bracket in place. The button clips or snaps onto the bracket.

•      Adhesive pads: Drill-free and ideal for renters or painted surfaces you don't want to damage. Make sure the surface is clean and dry before sticking. Press firmly and leave it for a few minutes before pressing the button to test.

Recommended height is roughly 1.2–1.4 metres from the ground, around chest to waist height, so it's accessible for most visitors.

Important note: Your push button lives outside, so it needs to handle rain, sun, and humidity. Check that your button has a weatherproof or IP-rated housing. If your kit came with a waterproof rating (e.g., IP55 or IP65), it's suitable for outdoor use in US conditions.

Step 4: Position and Plug In the Receiver

For a plug-in receiver, choose a power point in a central area of your home where you're likely to hear the chime easily. If your home has multiple floors, placing the receiver at the top or bottom of the stairs means sound travels both ways.

If your kit supports a second receiver, place it in the part of the house you're least likely to hear the first one from; a bedroom, garage, or workshop area works well.

Step 5: Pair the Button and Receiver

Many modern wireless doorbell kits come pre-paired and will work straight out of the box. If yours doesn't chime on the first test, you'll need to manually pair them. The usual process is:

4.    Press and hold the sync or pair button on the receiver (usually a small button on the side or back of the unit). Look for an LED to flash or a confirmation tone.

5.    Within a few seconds, press the doorbell button once.

6.    The receiver should chime or flash to confirm a successful pair.

Refer to your specific kit's instructions if the above doesn't apply — the pairing process varies slightly between brands.

Step 6: Choose Your Tone and Volume

Once paired, most receivers let you:

•      Cycle through a bank of chime melodies, typically 20 or more options, sometimes including seasonal tunes. Press the tone button to scroll through and stop when you find one you like.

•      Set the volume level, usually 3–5 levels are available. Turn it up for a large, noisy home or down for a quieter household, nursery, or bedroom.

•      Assign different tones to different buttons, if you have a front door button and a back gate button, you can set each to a different melody so you know which entrance your visitor is at.

Step 7: Test From Real Positions

With everything mounted and set up, do a final test from the actual installed positions:

7.    Stand at the front door and press the button.

8.    Confirm the receiver chimes clearly inside.

9.    Walk to the furthest parts of your home and press again, make sure the chime reaches everywhere you need it to.

If there are dead spots, try relocating the receiver to a more central position, or away from other electronics that may interfere with the signal.

A Note on Wired Doorbell Chimes

If you're replacing an existing wired chime unit, rather than starting fresh with wireless,  the process is more involved but still manageable for a confident DIYer:

•      Turn off the circuit breaker that powers your doorbell before touching any wiring.

•      A wired system consists of three components: the push button, the chime unit, and a transformer (usually mounted near the switchboard or inside a wall cavity) that steps down your mains power to a safe low voltage (typically 16–24V).

•      Replacing just the chime unit while keeping the existing transformer and button wiring is the most straightforward upgrade. Disconnect the old unit, note which wire goes to which terminal, connect the new chime unit the same way, and restore power.

•      Any work involving the transformer itself or adding new wiring should be handled by a licensed electrician. In Australia, working on or near mains wiring without a licence is not only risky — it's illegal.

What If It's Not Working After Setup?

If your chime isn't responding after installation, don't worry, most issues are simple to fix. The most common culprits are battery placement, a pairing miss, or the receiver being too far from the button.

For a full diagnostic walkthrough, head to our doorbell chime not working guide, which covers every common problem with both wireless and wired systems.

Wrapping Up

A wireless doorbell chime takes most people less than 30 minutes to install, start to finish — and the result is a reliable, flexible doorbell system that doesn't require any wiring work. Install the batteries, test before you mount, position the receiver where you'll hear it, and pair the two units. That's genuinely all there is to it.
